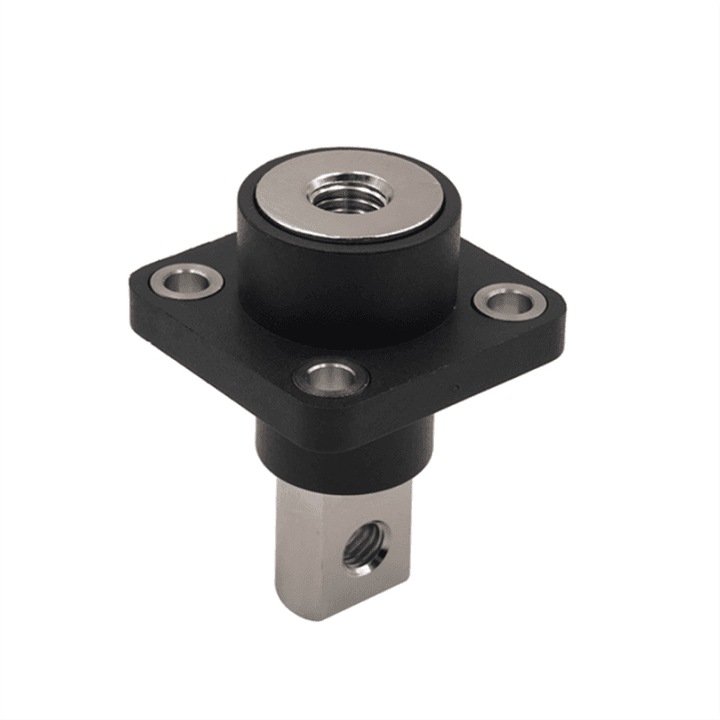

Lithium Battery 200A Terminal Post Through Panel
Category: Terminals & Connectors
Restocking SoonNew stock is on its way.
Description
The 200A Lithium Battery Terminal Post is rated for 1000V DC and features heavy-duty, nickel-plated copper conductors, an IP66 seal, and a UL94-V0 flame-retardant housing, ensuring secure, low-resistance connections for custom solar storage and DIY LiFePO4 packs.
Quantity
1
Total Price1,500 LKR
1,500 LKR × 1 unit · delivery quoted separately
Cash / bank transfer price1,450 LKR
Lithium Battery 200A Terminal Post Through Panel
| Parameter | Specification |
|---|---|
| Product Type | Terminal Post / Through Panel Post |
| Rated Current | 200 A |
| Rated Voltage | 1000 V DC |
| Material | PA66 (Insulation Body) / H62 Nickel-Plated Copper (Conductor) |
| Contact Resistance | ≤ 0.6 mΩ |
| Dielectric Strength | ≥ 3000 V |
| Flame Retardancy | UL94-V0 |
| IP Protection Rating | IP66 (Enclosure sealed) |
| Operating Temperature | -40°C ~ 125°C |
| Vibration Standard | QC/T 1067.1-2017 |
| Available Colors | Black / Red |
| Terminal Thread / Hole Size | M8 Internal Thread (Front) / M6 Through Hole (Rear Spade Tab) |
| Base Flange Dimensions | 35.5 mm x 35.5 mm |
| Mounting Hole Pattern | 23 mm x 23 mm spacing (4 x Ø 4.5 mm holes) |
| Panel Cutout Diameter | Ø 18.5 mm |
