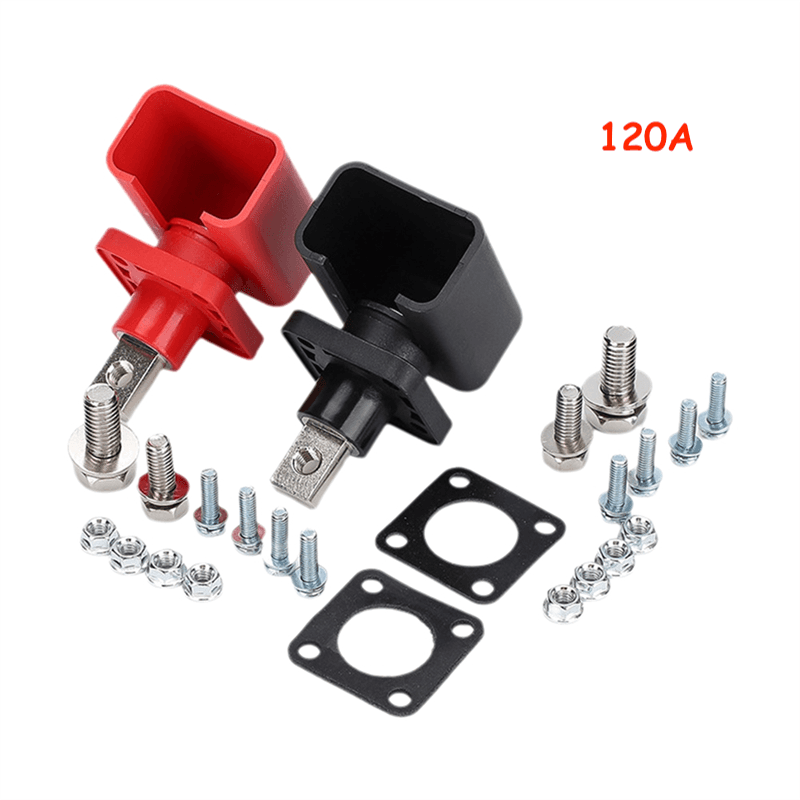

Lithium Battery Terminal Post 120A Pair (Red & Black) Through Panel
Category: Terminals & Connectors
Restocking SoonNew stock is on its way.
Description
The 120A Lithium Battery Terminal Post Pair (Negative-Black/Positive-Red) is rated for 1000V DC and features heavy-duty, nickel-plated copper conductors, an IP66 seal, and a UL94-V0 flame-retardant housing, ensuring secure, low-resistance connections for custom solar storage and DIY LiFePO4 packs.
What's in this combo
- 2 pcs × Lithium Battery 120A Terminal Post Through Panel2,600 LKR
- Bought separately
- 2,600 LKR
- Combo price
- 2,350 LKR
- You save
- 250 LKR (10%)
Quantity
1
Total Price2,350 LKR
2,350 LKR × 1 unit · delivery quoted separately
Cash / bank transfer price2,250 LKR
Threaded Copper Lithium 120A Battery Terminal Post Pair Specifications
| Parameter | Specification |
|---|---|
| Product Type | Terminal Post / Through Panel Post Pair |
| Rated Current | 120 A |
| Rated Voltage | 1000 V DC |
| Material | PA66 (Insulation Body) / H62 Nickel-Plated Copper (Conductor) |
| Contact Resistance | ≤ 0.6 mΩ |
| Dielectric Strength | ≥ 3000 V |
| Flame Retardancy | UL94-V0 |
| IP Protection Rating | IP66 (Enclosure sealed) |
| Operating Temperature | -40°C ~ 125°C |
| Vibration Standard | QC/T 1067.1-2017 |
| Available Colors | Black (-) and Red (+) |
| Terminal Thread / Hole Size | M6 Internal Thread (Front) / M6 Hole (Rear Spade Tab) |
| Base Flange Dimensions | 30 mm x 30 mm |
| Mounting Hole Pattern | 20 mm x 20 mm spacing (4 x Ø 4.5 mm holes) |
| Panel Cutout Diameter | Ø 16 mm |
