TDT-BMS Home ESS 7-16S Rated 200A Balance 3A with 4.3" Touch Display

Name: TDT-BMS Home ESS 7-16S Rated 200A Balance 3A with 4.3" Touch Display
Brand: Ray Vault Energy
SKU: TDT3A16S20P
Price: 41100 LKR
Availability: BackOrder

Category: BMS

Restocking SoonNew stock is on its way.

Description

TDT-1001 Inverter BMS Home Energy Storage Series 7-16S Rated 200A Balance 3A with 4.3" Touch Display, and the Package Includes: BMS Board, Communication Interface, Power Button, Display (Optional Plastic Casing), and Wire Harness.

Quantity

Total Price41,100 LKR

41,100 LKR × 1 unit · delivery quoted separately

Cash / bank transfer price39,800 LKR

See full specifications

Island-wide delivery, paid to the courier on arrival. Unused items can be returned within 7 days (return policy, warranty terms).

TDT-BMS Home ESS 7-16S Rated 200A Balance 3A with 4.3" Touch Display specifications

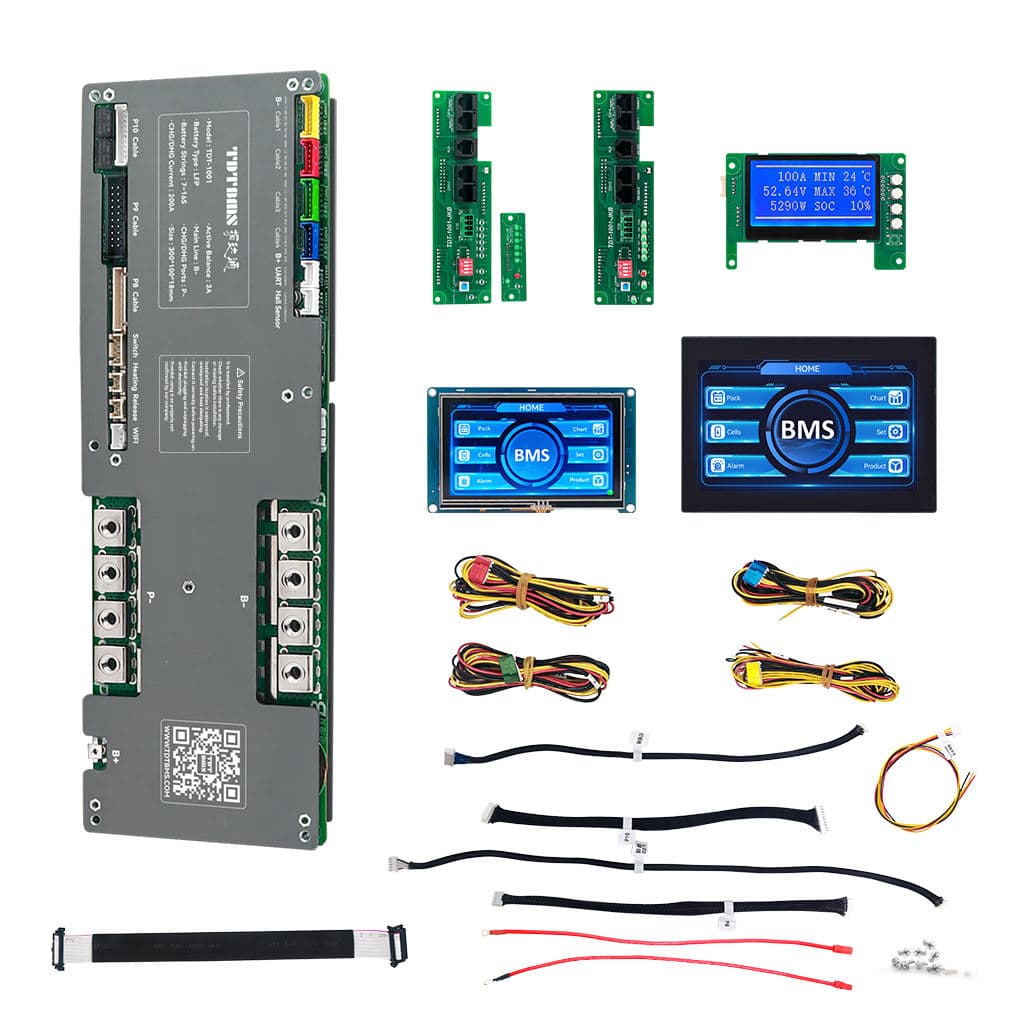

Package Includes

TDT Smart BMS Board
4.3" Touch Display (Optional Plastic Case)
Balancing Wire Harness (Sampling Cables)
NTC Temperature Sensors
On/Off Power Switch

Optional Add-ons

Wifi Communication Module
Heating Module

Technical Specifications

TDT-BMS Home ESS 7-16S Rated 200A Balance 3A with 4.3" Touch Display technical specifications
Parameter	Specification
Model	TDT-1001
Supported Series	7S to 16S
Supported Current Range	50A to 300A (Covers 100A, 150A, 200A)
Battery Chemistry	Li-ion / LiFePO4
Active Balancing	Built-in 3A active balance
Parallel Support	10A parallel current limiting module (supports up to 20 battery groups in parallel)
Temperature Sensors	6 Total (4 for battery pack, 1 for ambient environment, 1 for MOS)
Inverter Communication	(RS485/CAN) - PYLONTECH, GOODWE, Growatt, Victron Energy, etc.
Dimensions (L x W x H)	300 mm x 100 mm x 18 mm
Weight	1.095 kg
