Out of StockBattery Casings
Casing For 51.2V 314Ah 16kWh Battery Pack
Casing for 314Ah 16 cells 16kwh battery pack.
86,400 LKRCash price 83,800 LKR
Image 1 of 4

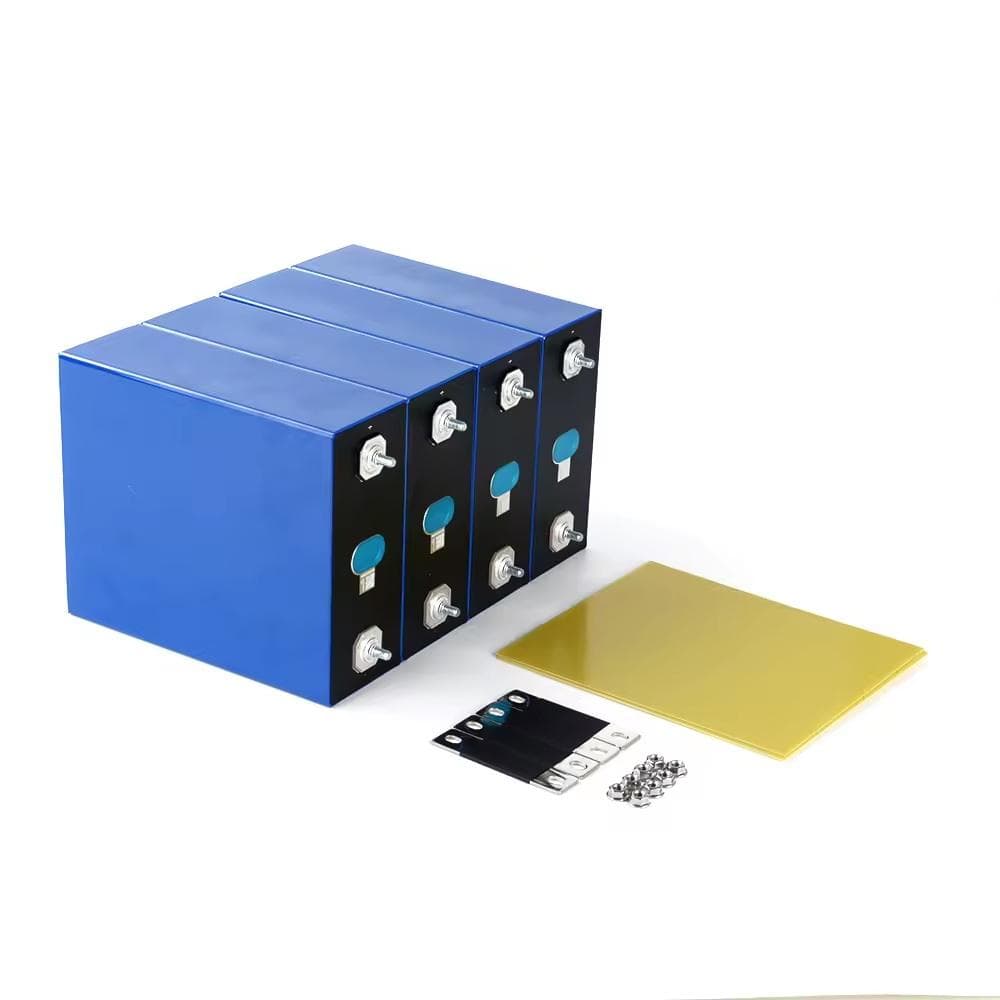

EVE 314Ah 3.2V LiFePO4 Cell
Category: Cells
Pre-OrderImported on order - delivered from our next shipment.
Description
Original EVE 314Ah A-grade LiFePO4 cell (MB31). Over 8,000 cycles, and the weight is around 5.45kg.
Total Price31,800 LKR
31,800 LKR × 1 unit · delivery quoted separately
Island-wide delivery, paid to the courier on arrival. Unused items can be returned within 7 days (return policy, warranty terms).
EVE 314Ah 3.2V LiFePO4 Cell specifications
| Parameter | Specification |
|---|---|
| Model | MB31 |
| Chemistry | Prismatic LFP (Lithium Iron Phosphate) |
| Nominal Capacity | 314 Ah |
| Nominal Energy | 1004.8 Wh |
| Nominal Voltage | 3.2 V |
| Cycle Life | 8000 cycles (to 70% State of Health at 25°C) |
| Weight | 5600 g ± 300 g (approx. 5.6 kg) |
| Dimensions (L x W x H) | 173.7 mm x 71.7 mm x 207.2 mm (including terminal) |
| Internal Resistance (ACR) | 0.18 mΩ ± 0.05 mΩ |
| Charging Cut-off Voltage | 3.65 V |
| Discharging Cut-off Voltage | 2.5 V (above 0°C) |
| Standard Charge / Discharge | 0.5P |
| Charging Temperature | 0°C to 60°C |
| Discharging Temperature | -30°C to 60°C |
