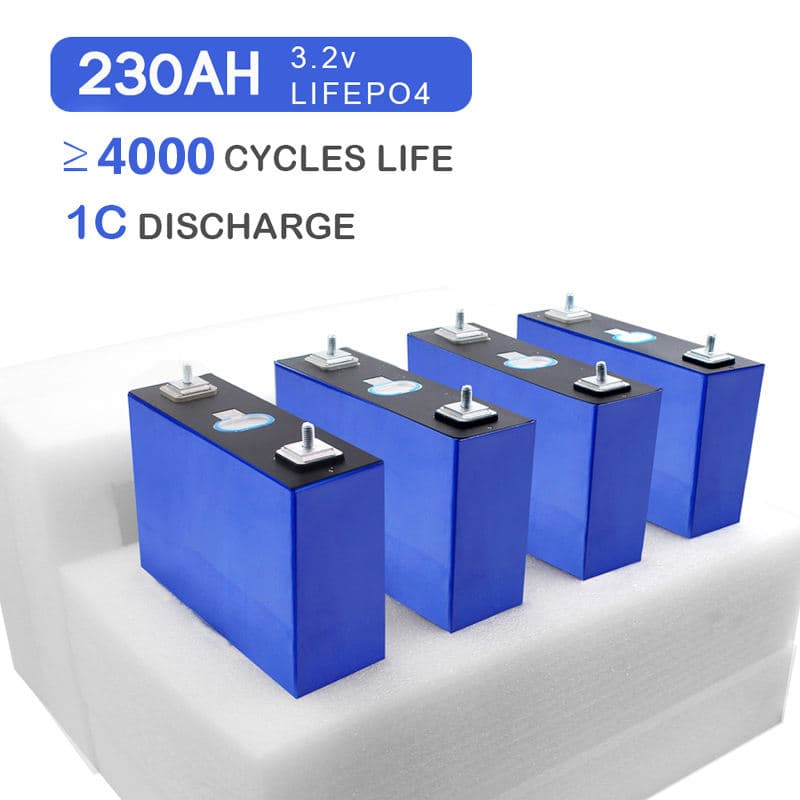

EVE 230Ah 3.2V LiFePO4 Cell
Category: Cells
Pre-Order
Description
Original EVE 230Ah A-grade LiFePO4 cell (LF230N). Over 3500 cycles, and the weight is around 4.12kg.
Select Warranty Period
Quantity
1
Total Price25,700 LKR
25,700 LKR × 1 unit · delivery quoted separately
EVE LF230 230Ah Prismatic LFP Cell
| Parameter | Specification |
|---|---|
| Model | LF230 |
| Cell Type / Chemistry | Prismatic LFP (Lithium Iron Phosphate) with aluminum shell |
| Typical Capacity | 230 Ah |
| Typical Voltage | 3.2 V |
| Cycle Life | ≥ 3500 cycles (to 80% initial capacity @ 1C/1C, 25°C) |
| Weight | 4.11 kg ± 0.10 kg |
| Dimensions (L x W x H) | 173.93 mm ± 0.5 mm x 53.85 mm ± 0.4 mm x 207.3 mm ± 0.5 mm (Total height) |
| Pole Center Distance (Tab Distance) | 123.0 mm ± 0.3 mm |
| Initial Internal Resistance (ACR) | < 0.30 mΩ |
| Charging Cut-off Voltage | 3.65 V |
| Discharging Cut-off Voltage | 2.5 V |
| Standard Charge Current | 0.5C (115 A) |
| Standard Discharge Current | 0.5C (115 A) |
| Max. Continuous Charge Current | 1C (230 A) |
| Max. Continuous Discharge Current | 1C (230 A) |
| Max. Pulse Discharge Current (60s) | 2C (460 A) |
| Recommended SOC Window | 10% ~ 90% |
| Charging Working Temperature | 0°C ~ 60°C |
| Discharging Working Temperature | -30°C ~ 60°C |
