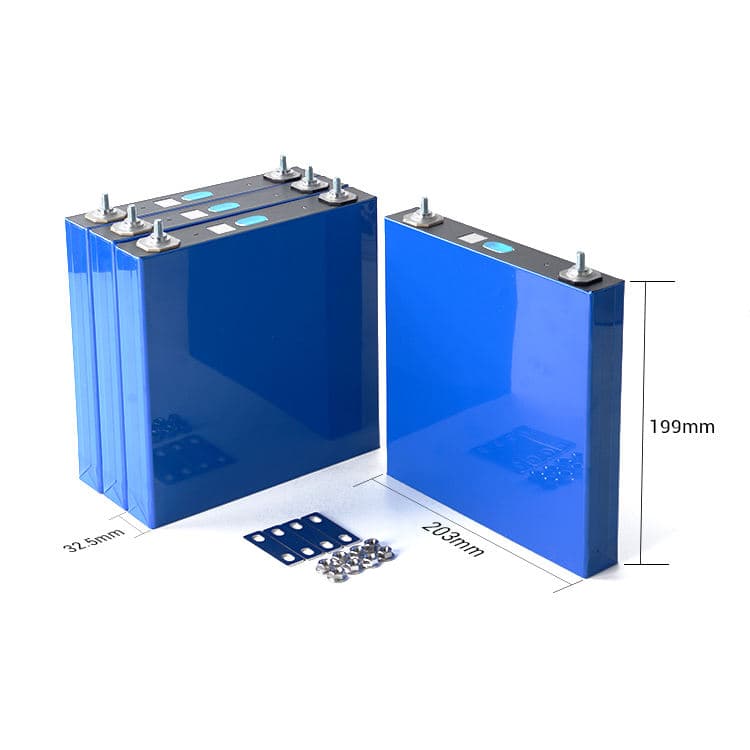

EVE 150Ah 3.2V LiFePO4 Cell image 1
Image 1 of 4

EVE 150Ah 3.2V LiFePO4 Cell

Category: Cells
Only 1 leftLimited stock - order soon.

Description

Original EVE 150Ah A-grade LiFePO4 cell (LF150). Over 3,500 cycles, and the weight is around 2.95kg.

Select Warranty Period
Card price19,300 LKR
19,300 LKR × 1 unit · delivery paid to the courier on arrival
Bank transfer price18,700 LKR
See full specifications

Island-wide delivery, paid to the courier on arrival. Unused items can be returned within 7 days (return policy, warranty terms).

EVE 150Ah 3.2V LiFePO4 Cell specifications

EVE 150Ah 3.2V LiFePO4 Cell technical specifications
ParameterSpecification
ModelLF150
Cell Type / ChemistryPrismatic LFP (Lithium Iron Phosphate) with aluminum shell
Nominal Capacity≥ 150.0 Ah
Nominal Energy≥ 483 Wh
Nominal Voltage3.22 V
Cycle Life4000 cycles (to ≥ 80% SOH @ 0.5C/0.5C, 25°C, 300 kgf preload)
Weight2890 g ± 86 g (approx. 2.89 kg)
Dimensions (L x W x H)200.30 mm ± 0.50 mm x 33.25 mm ± 0.50 mm x 207.50 mm ± 0.50 mm (Total height including terminals)
Pole Center Distance150.00 mm ± 0.30 mm
Initial Internal Resistance (ACR)0.39 mΩ ± 0.05 mΩ (at 1 kHz, 19%~23% SOC)
Charging Cut-off Voltage3.65 V
Discharging Cut-off Voltage2.5 V (T > 0°C) / 2.0 V (T ≤ 0°C)
Standard Charge Current0.5C (75 A)
Standard Discharge Current0.5C (75 A)
Max. Continuous Discharge Current1C (150 A)
Max. Instantaneous Discharge Current3C (450 A, 60 s @ ≥ 30% SOC, 25°C)
Charging Temperature0°C ~ 65°C
Discharging Temperature-35°C ~ 65°C
