Gotion 54Ah 3.2v LiFePO4 Cell
Category: Cells
Pre-Order
Description
The Gotion IFP29148112-54Ah is a robust prismatic LFP cell with a 54Ah capacity and a lifespan of 3000 cycles. With support for 2C continuous fast charging, it is highly optimized for demanding electric vehicle and energy storage applications.
Quantity
1
Total Price7,200 LKR
7,200 LKR × 1 unit · delivery quoted separately

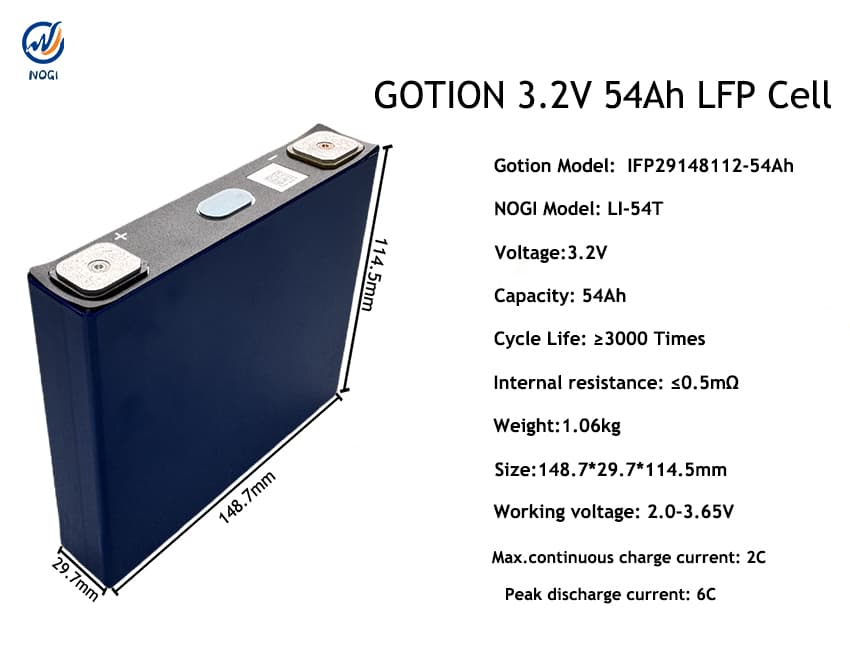

Gotion IFP29148112-54Ah Prismatic LFP Cell
| Parameter | Specification |
|---|---|
| Model | IFP29148112-54Ah |
| Cell Type / Chemistry | Prismatic LFP (Lithium Iron Phosphate) |
| Nominal Capacity | 54 Ah (at 1C) / 55 Ah (at 0.33C) |
| Nominal Voltage | 3.2 V (at 0.33C) / 3.15 V (at 1C) |
| Cycle Life | 3000 cycles (to 80% capacity retention @ 25°C, 1C ladder) |
| Weight | 1060 g ± 80 g |
| Dimensions (W x T x H) | 148.66 mm ± 0.3 mm (bottom width) x 29.72 mm ± 0.3 mm x 114.5 mm ± 0.5 mm (total height including poles) |
| Initial Internal Resistance (ACR) | 0.2 mΩ ≤ R ≤ 0.5 mΩ (at 25°C ± 2°C, 17% ± 3% SOC) |
| Initial DCR | < 1.5 mΩ (at 50% SOC, 5C 10s, 25°C ± 2°C) |
| Charging Cut-off Voltage | 3.65 V |
| Discharging Cut-off Voltage | 2.5 V (T > 0°C) / 2.0 V (T ≤ 0°C) |
| Standard Charge Current | 27 A (0.5C) |
| Standard Discharge Current | 54 A (1C) |
| Max. Constant Charge Rate | 2C |
| Charging Temperature | -20°C ~ 55°C |
| Discharging Temperature | -30°C ~ 60°C |
