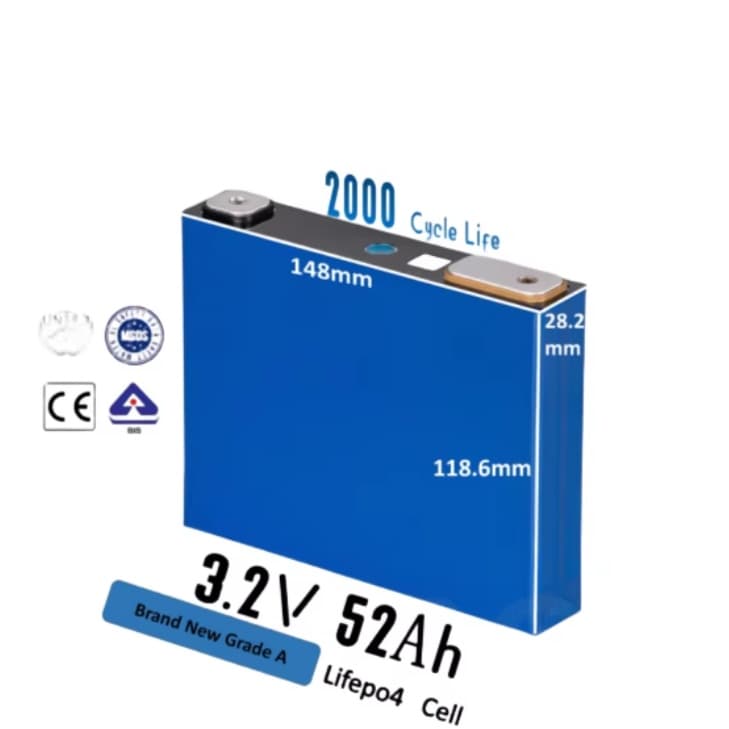

Gotion 52Ah 3.2v LiFePO4 Cell
Category: Cells
Pre-Order
Description
Original Gotion 52Ah A-grade LiFePO4 cell (IFP28148115A-52Ah). Over 2,000 cycles, and the weight is around 966g.
Select Warranty Period
Quantity
1
Total Price7,200 LKR
7,200 LKR × 1 unit · delivery quoted separately
Gotion IFP28148115A-52Ah Prismatic LFP Cell
| Parameter | Specification |
|---|---|
| Model | IFP28148115A-52Ah |
| Cell Type / Chemistry | Prismatic LFP (Lithium Iron Phosphate) |
| Typical Capacity | ≥ 52 Ah (at 1C) |
| Nominal Voltage | 3.2 V (at 0.33C) / 3.1 V (at 1C) |
| Cycle Life | 2000 cycles (to 80% capacity retention @ 25°C, 1C) |
| Weight | 966 g ± 30 g (without external film) |
| Dimensions (W x T x H) | 148.0 mm ± 0.3 mm x 28.2 mm ± 0.5 mm x 118.5 mm ± 0.3 mm (Total height including poles) |
| Pole Center Distance | 118.0 mm ± 0.3 mm |
| Initial Internal Resistance (ACR) | 0.5 mΩ ≤ R < 0.8 mΩ (at 25°C ± 2°C) |
| Initial DCR | ≤ 2.5 mΩ (at 50% SOC, 25°C ± 2°C) |
| Charging Cut-off Voltage | 3.65 V |
| Discharging Cut-off Voltage | 2.0 V (T > 0°C) / 1.8 V (T ≤ 0°C) |
| Standard Charge Current | 26 A (0.5C) |
| Standard Discharge Current | 52 A (1C) |
| Charging Temperature | 0°C ~ 55°C |
| Discharging Temperature | -30°C ~ 60°C |
